CYZ · OUTDOOR
Portable Inflator
CYZ · PBZ.QPCZ01-012010
A compressor, hose and accessories, organised in one carrying case. Connect to an external vehicle power source, inflate and pack away.
12VDC
≥75.1L/min
105PSI
01 / Overview

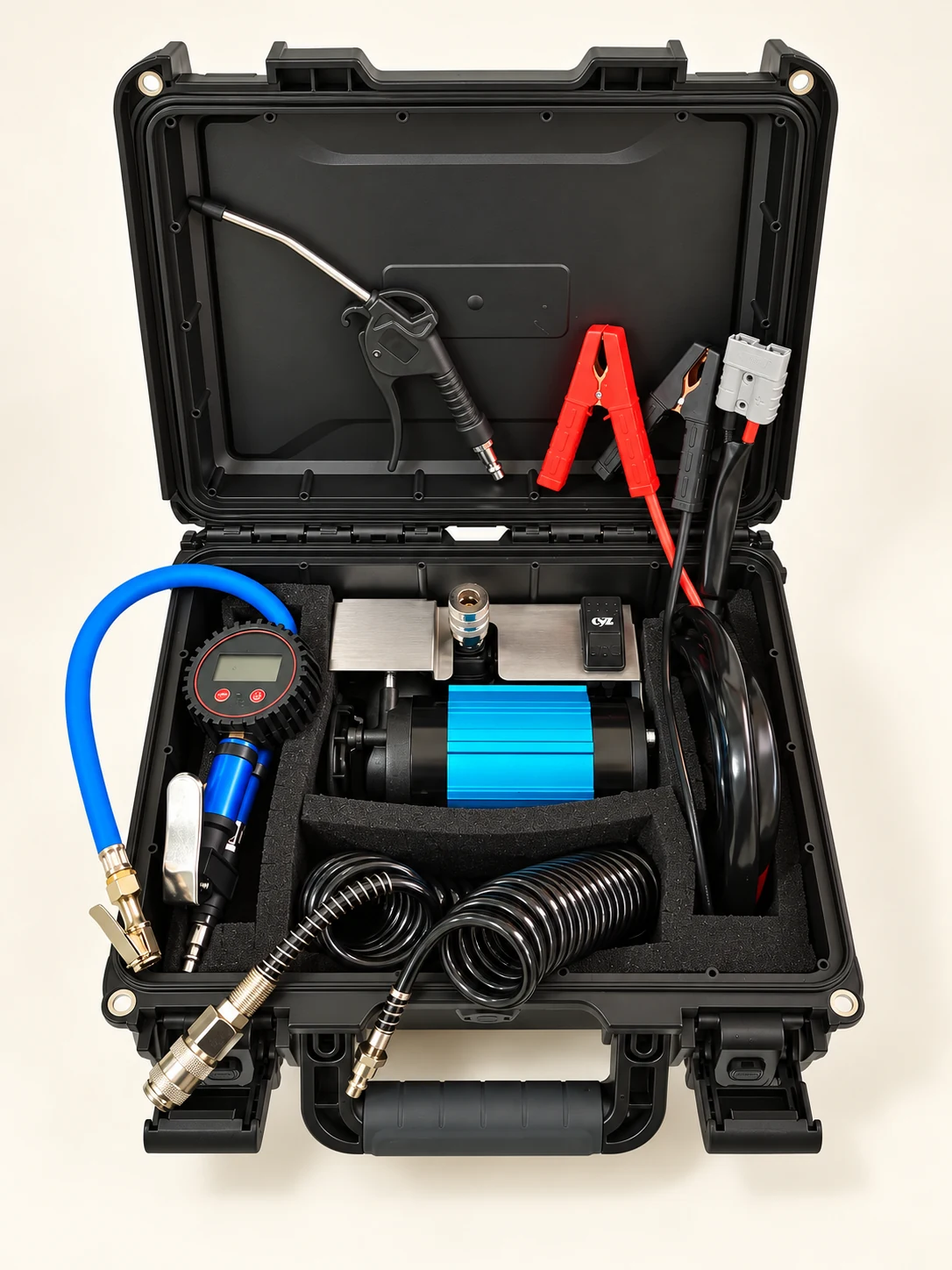

Everything in its place. Ready to unpack.
Dedicated compartments organise the compressor, power leads and hose. Take out the components you need, then store them together after use.
Connect to an external 12V DC power source for use.

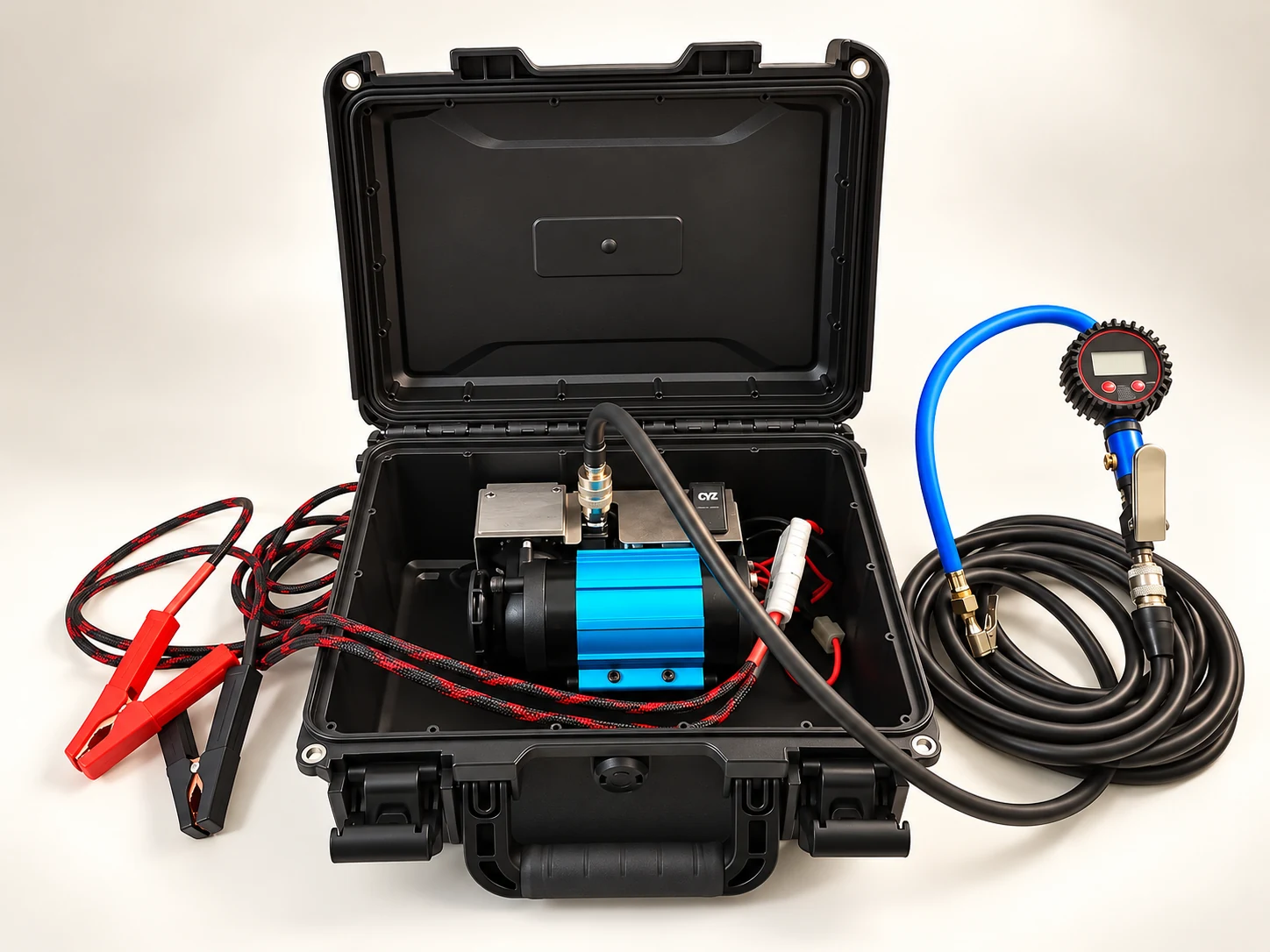

In the kit
- Compressor and carrying case
- Battery-clamp power leads
- Air hose and connection fittings
- Inflation accessories with pressure gauge
02 / Specifications
Specifications
CYZ · PBZ.QPCZ01-012010
- Model
- PBZ.QPCZ01-012010
- Operating voltage
- 12V DC
- Motor
- Single brushed motor
- No-load current
- 13A
- Maximum load current
- ≤32A
- Free air delivery · no load
- ≥75.1 L/min
- Airflow at 29 PSI
- 60 L/min
- Maximum operating pressure
- 105 PSI
- Safety relief pressure
- 150 PSI
- Duty cycle
- 50% · 30 min ON / 30 min cooling
- Maximum ambient temperature
- +100°C
- Air hose
- 7m · PU hose · quick connector
- Case material
- Rigid PP protective tool case
- Electrical protection
- Fuse, reverse-polarity and thermal protection
Free air delivery and pressurised airflow describe different conditions. 150 PSI is the safety relief pressure, not the maximum operating pressure. Duty cycle: 30 minutes ON / 30 minutes cooling. Please confirm the applicable test and operating conditions with us.
03 / Product visuals
Considered details. Practical portability.
